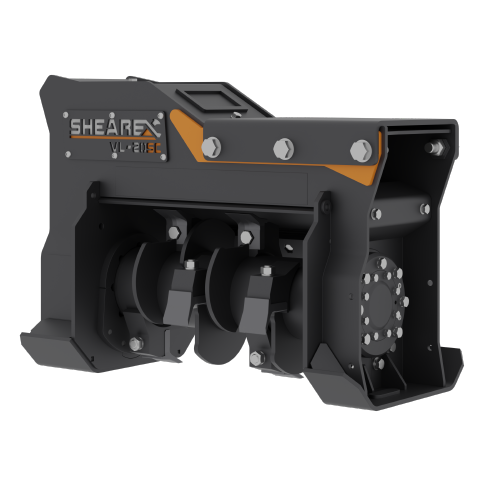

Light Duty Excavator Mulcher
VL Series
Shearex’s Mini Bite Limiter Mulcher attachment is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance! With years of experience, Shearex offers one of the most powerful land-clearing attachments on the market, featuring a quick and easy coupling system.
Every VL mulcher comes with a complimentary kit packed with essentials to get you up and running. This customer kit contains eight blades (bolts included), one tube of grease, a Shearex cap, the user manual, and a sharpening guide.
- Poly-Chain®️ Carbon transmission belt.
- Internal shell/ wear plate made of Hardox®️ 500 for ultimate wear resistance.
- Durable, drainless piston motor built to withstand maximum pressure up to 5,800 PSI and return line pressure up to 360 PSI. Enjoy enhanced durability and speed while minimizing internal wear.
- Extremely durable oversized axles and bearings.
- Bolted counter blade for easy replacement and added durability.
- Comes with a complimentary kit, which includes a set of spare blades, tube of grease, a Shearex cap and a sharpening guide.
Product Specification

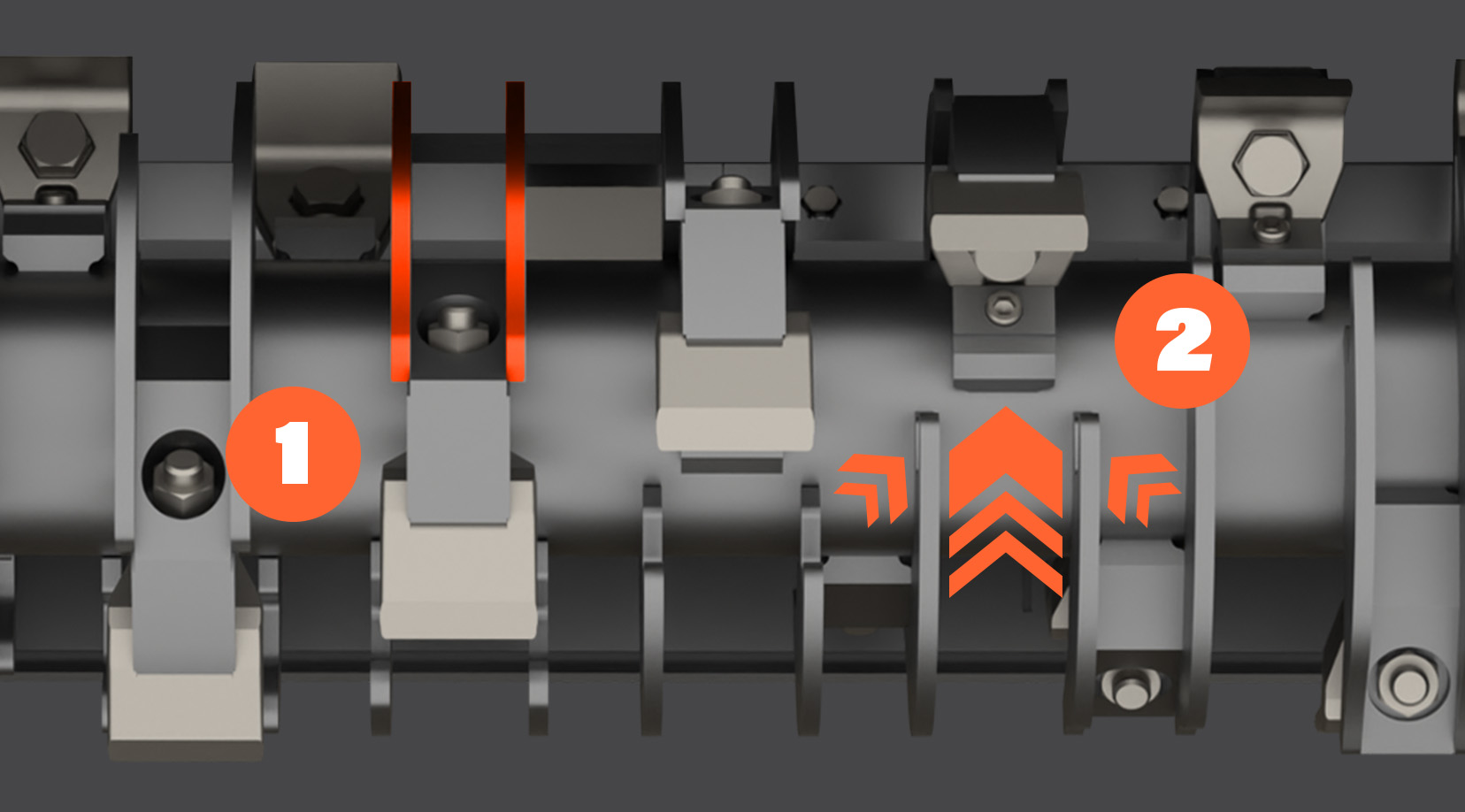

CONVEX DX™ PROTECTION SYSTEM
Our patented rotor design optimizes machine power while protecting the blade holders and reducing blade wear.
/1 Through our unique rotor configuration, the depth limiting rings are welded to both sides of the tooth holder, greatly increasing holder strength and durability.
/2 The ring geometry forces the material towards to the center of the blade instead of just the edges. This means less blade wear and long-lasting performance where it counts.
|
Model |
|
VL-20SC |
VL-30SC |
|---|---|---|---|
| Excavator size | Tons | 2 to 4 | 3 to 7 |
| Recommended Minimum Carrier power | HP (KW) | 20 (15) | 30 (23) |
| Cutting Width | in (cm) | 21.25 (54) | 31 (78) |
| Cutting Distance from cutting ground level | in (cm) | 0.25 (0.64) | 0.25 (0.64) |
| Number of Blades on Rotor | 8 | 12 | |
| Optimal Target Material Diameter | in (cm) | <3 (<7.5) | <4 (<10) |
| Door | Mechanical | Mechanical | |
| Exterior Lenght | in (cm) | 32.5 (83) | 42 (107) |
| Exterior Height | in (cm) | 22.75 (58) | 22.75 (58) |
| Exterior Width | in (cm) | 18 (45) | 18 (45) |
| Rotor Diameter | in (cm) | 13 (33) | 13 (33) |
| Approximate Typical Weight | lbs (KG) | 430 (195) | 550 (250) |
| Fixe Axial Piston Motor | cc | 12 (18 optional) | 18 |
| Minimum required Continous Flow | gal/min (l/min ) | 8 (30) | 13 (49) |
| Maximum allowed Continous Flow | gal/min (l/min) | 18 (68) | 18 (68) |
| Maximum Operating pressure | bar (PSI) | 400 (5,800) | 400 (5,800) |
| Rotating Speed | rpm | 3500 | 3500 |
| Pulley Ratio | 01:01 | 01:01 | |
| Pressure Line I.D. | # (IN) | #10 (0.625) | #10 (0.625) |
| Return Line I.D. | # (IN) | #10 (0.625) | #10 (0.625) |
| Drain Line I.D. | # (IN) | None | None |
| Tilt | None | None | |
| Grapple | None | None | |
| Heel | Optional | Optional | |
Compatible with compact excavators from 2 to 7 tons.
Door - Requires 1 auxiliary hydraulic line (pressure + return) and 1 case drain. A diverter valve is included for door control. Electrical power (12V or 24V) must be supplied by the machine; wiring is included.
Tilt - A second double auxiliary hydraulic line is strongly recommended to allow lower pressure settings. Operation with a double diverter valve is possible but not recommended.
Grapple - Combination of tilt and grapple: Requires 2 double auxiliary hydraulic lines plus a case drain. Use of a triple diverter valve is not recommended due to poor performance.
The VL mulcher is offered with these options:
- Heel.
- Front free door.
- 18cc motor on the VL-20SC (included with the 30SC model).
